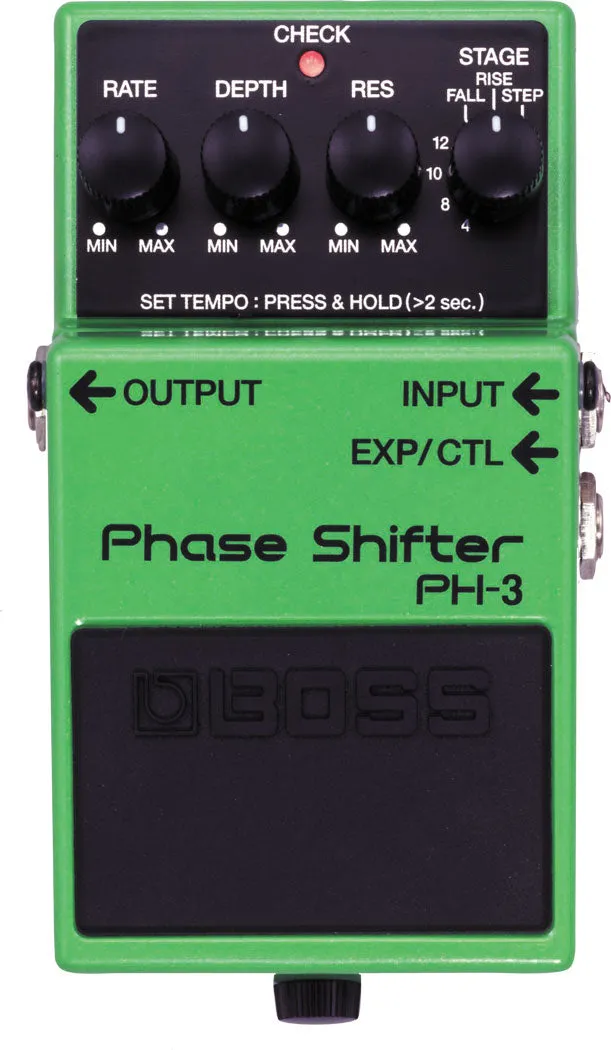

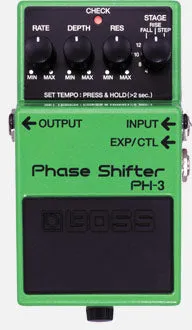

The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.
- Compact pedal with versatile vintage and modern BOSS phasing
- New "Rise" and "Fall" modes create unidirectional phasing
- Includes classic multi-stage phasers with selectable stages
- Realtime control of Rate via optional expression pedal
- Tap tempo sync of phasing effects
- BOSS five-year warranty
“Rise” and “Fall” Effects
In addition to standard up and down cycles, the new PH-3 Infinite Phaser can produce entirely upward or downward moving sounds through its new Rise and Fall effects. There’s also 4-, 8-, 10-, and 12-stage phasers, plus a Step effect.
Total Control
Syncing the PH-3’s phasing effects can be achieved by simply tapping the pedal to the tempo desired. Or, for maximum control, connect an optional expression pedal to control both rate and filter in real time as you play.
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- STAGE switch
RES(Resonance) knob
DEPTH knob
RATE knob
Pedal switch - Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch stereo phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately) - Current Draw
- 40 mA
- Expected battery life under continuous use
- Alkaline: Approx. 9.5 hours
Carbon: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use. - Accessories
- Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
Expression pedal: EV-30/FV-500L/FV-500H, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7 - Size and Weight
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 415 g
15 oz - * 0 dBu = 0.775 Vrms
- *The specifications are subject to change without notice.
