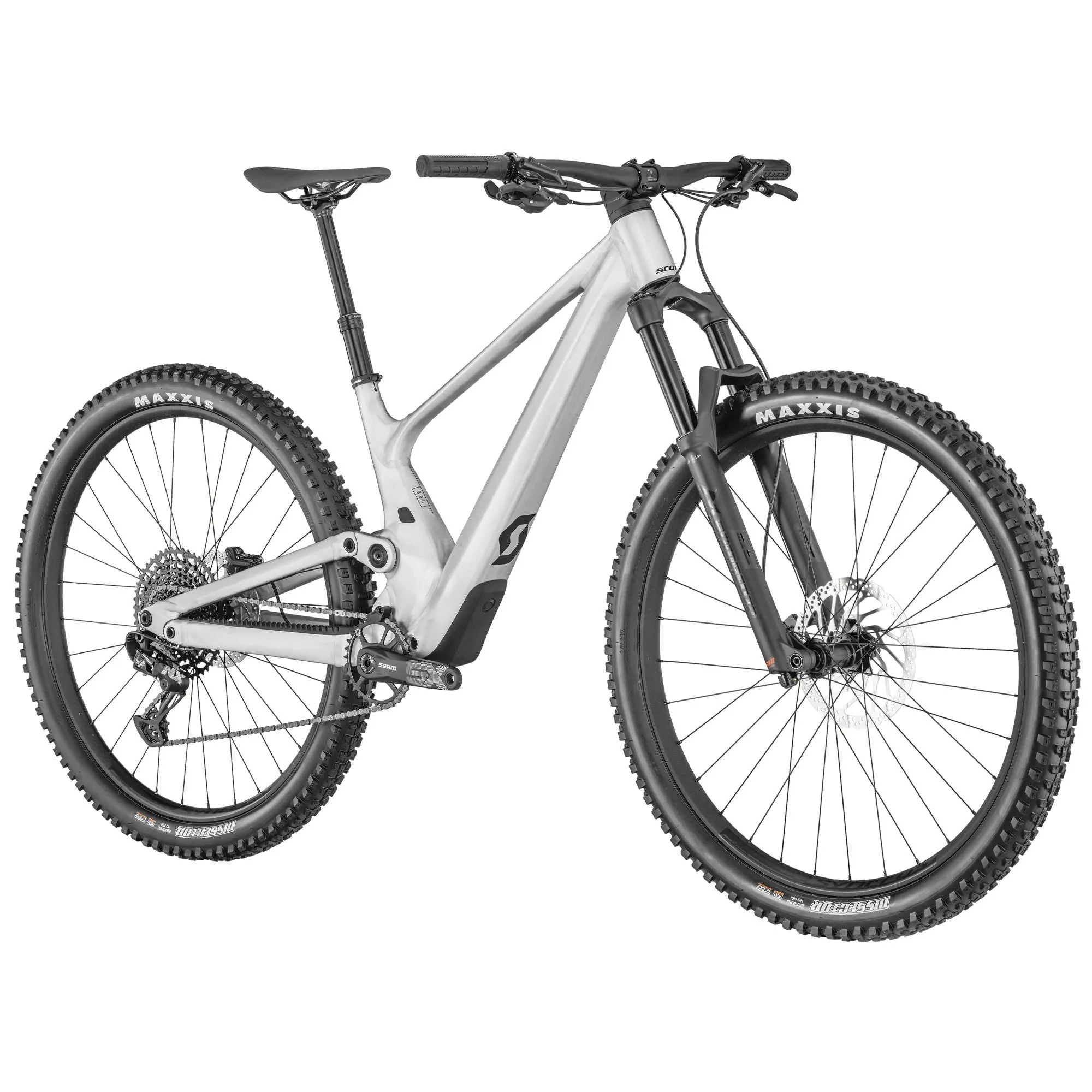

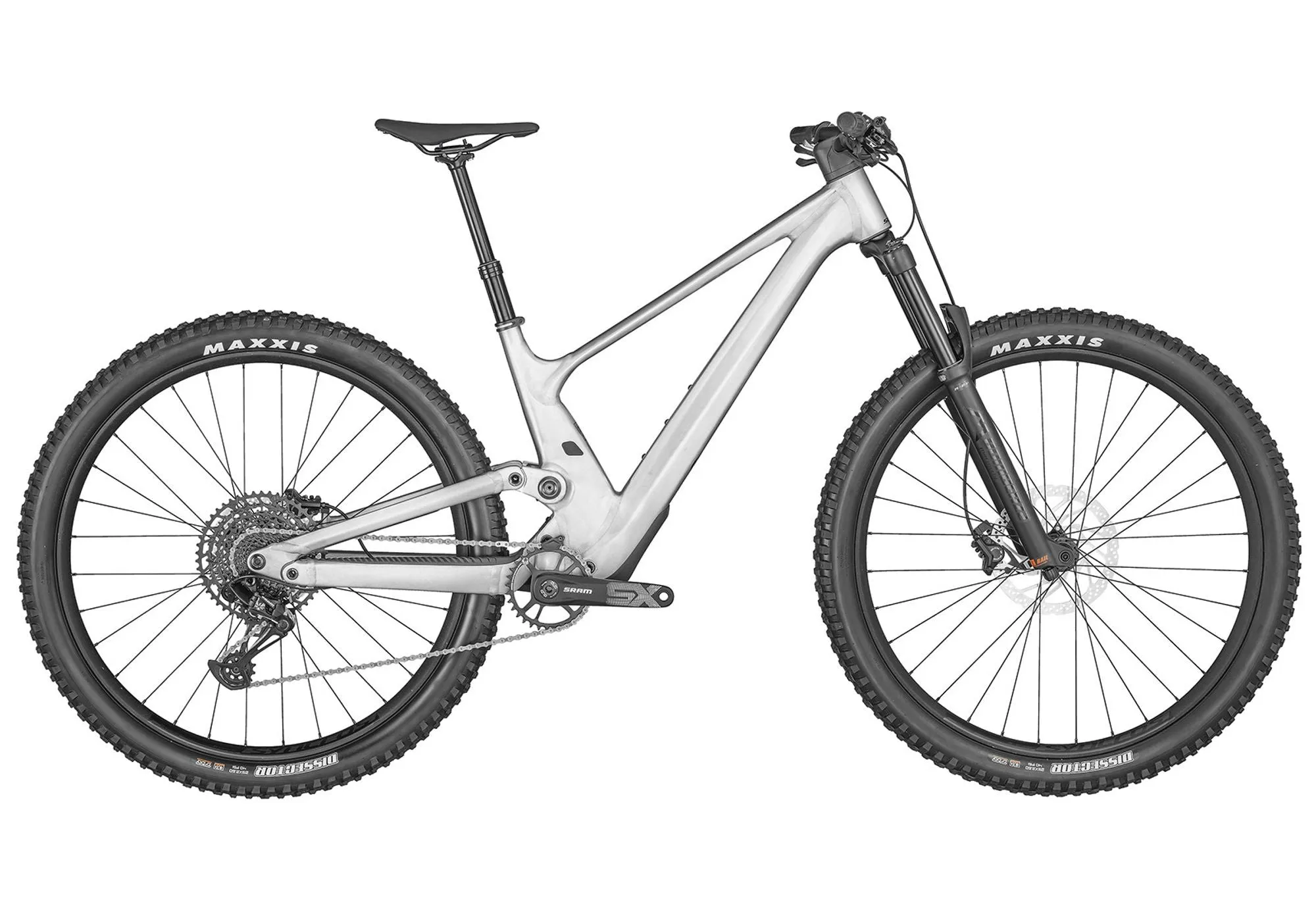

Discover the ultimate trail riding experience with the Scott Genius 940. Featuring smart suspension, advanced features, and a cutting-edge design, this bike is perfect for tackling any terrain with ease. Upgrade your ride with the All-New Genius and conquer any trail, any time.
SPECIFICATIONS
-
FRAME
Genius Alloy 6061
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
-
FORK
Marzocchi Z2 Air Rail
3-Modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 150mm travel
-
REAR SHOCK
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 150-100-Lockout / T185X55mm
-
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
REAR DERAILLEUR
SRAM NX Eagle 12 Speed
-
SHIFTERS
SRAM SX Eagle Trigger
-
CRANKSET
SRAM SX Eagle DUB
55mm CL / 32T
-
BB-SET
SRAM DUB PF 92 MTB Wide / shell 41x92mm
-
CHAIN
SRAM CN SX Eagle
-
CASSETTE
SRAM SX-PG1210 / 11-50 T
-
BRAKES
Shimano MT501 Disc
-
ROTOR
Shimano SM-RT30 CL / 203/F and 180/R
-
HANDLEBAR
Syncros Hixon 2.0 Alloy 6061 D.B.
12mm Rise / back sweep 8° / 780mm
Syncros Endurance lock-on grips
-
H'STEM
Syncros AM 2.0
Syncros Cable Integration System
4° rise / 6061 Alloy / 31.8mm / 1 1/8"
-
SEATPOST
Syncros Duncan Dropper Post
31.6mm / S size 130mm / M size 150mm / L & XLsize 170mm
-
SEAT
Syncros Tofino 2.5 Regular
-
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System
-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
-
HUB (FRONT)
Formula CL-811 / 15x110mm
-
HUB (REAR)
Formula CL-148S / 12x148mm
-
SPOKES
Stainless Black 15G / 1.8mm
-
RIMS
Syncros X-30S / 32H / 30mm / Sleeve Joint
-
FRONT TIRE
Maxxis Dissector / 60TPI Foldable
Tubeless Ready / EXO
-
REAR TIRE
Maxxis Dissector / 60TPI Foldable
Tubeless Ready / EXO
-
APPROX WEIGHT IN KG
15.8 (with tubes)
-
APPROX WEIGHT IN LBS
34.83 (with tubes)
-
MAX. SYSTEM WEIGHT
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
